Lakeland Company, Rathdrum, Idaho
by Susan Brimo-Cox

Lakeland’s GFRC mix is an alkali-resistant matrix of portland cement, graded silica sands and alkali-resistant chopped glass fiber. The material, which contains 4 percent to 5 percent glass content, is applied in a spray-up method, using concentric guns, and compacted in quarter-inch layers. The panels produce strength of approximately 6,000 pounds per square inch at 3...4" of thickness and can be left hollow or filled with concrete grout for structural applications. They can also be filled with two-part foam to discard hollow sound where weight is a concern.

“Most projects we grout fill to further the quality of the application.” Long says. “We have not had any structural problems with panel or boulders in freeze-thaw conditions as the result of quality control during manufacturing.”

While 60 percent to 80 percent of a Lakeland project may utilize GFRC, you’ll also see positive carved concrete, textured concrete overlays and real rock. To simulate eroded shorelines and cut banks, shotcrete is used. “Very seldom do we do all artificial,” says Long. “That’s primarily in indoor environments. In exterior applications we strive to use real rock in and around the artificial.”

Coloring methods vary with each project
Long says his company typically doesn’t color dust their molds, because you’ll have grout seams anyway. His preference is toapply a base coat in a random color application after the panels are grouted together.

“Our base coats consist of a very fine concrete color coat mixed with acrylic admixture to promote excellent adhesive capabilities. The bulk of the color base coat is applied with a very fine concrete color coating so as not to lose the detail of the panel textures.” Acid stains may be used in different combinations to create various effects. Painting techniques, such as creating washed areas with water-based acrylics, are used as accents — for example, to replicate oxide or soil residues. Especially with large outdoor projects, the company will often work with local landscapers to color-match local stone.

Long has also used these and other color and texture methods to re-create antiquities or period pieces.

Maintenance of artificial environments is minimal, Long says. The greatest challenge is ultraviolet light damage, but it helps to apply a penetrating sealer after the coloring is complete.

“We have found that our coloring process will hold its color about 3-to-5 years…. We have had customers refresh the coloring on their project at that time and others who leave it due to the fact that they like the way it has weathered and find it looks more natural.”

Challenges create opportunity

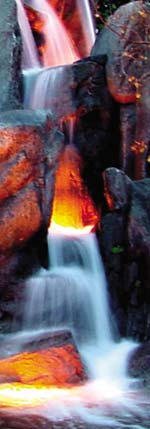

“Each project in itself is challenging from the standpoint of striving to constantly better the finish look and application methods,” reflects Long. Replicating trees and architectural antiquities takes a special touch. One project included creating a trail of fire through a waterfall.

Of course, some projects are much more challenging than others. Take the Lake Tahoe project for example. The decision to incorporate the mechanical room into a “mountain” forced them to keep ahead of the tight construction schedule by re-engineering, designing on site, changing rock work and the pump/control systems simultaneously without stopping construction, Long recalls.

A project in Cripple Creek, Colo., presented an interesting altitude-related challenge. “The lack of air was obvious during the project, and we were forced to sit down and catch our breath multiple times throughout each day.”

Then there was a project for the U.S. Bureau of Mines to replicate a mine shaft interior for its training facilities. The job site was two stories underground. Lakeland had to crane concrete panels down through a vertical shaft, cart them to their location, and then lift and bolt them to the ceiling, which was constructed of 25,000-psi concrete 2 feet thick, with pipe sleeves through to the surface. “We had to run all thread through those sleeves to secure the panel placements, and that enabled us to recreate the plate bolting that occurs to anchor loose rock in real mineshafts,” Long says. “We also paneled the walls and created what appeared to be natural seepage and water emitting from rock crevasses into mineshaft drain trenches.”

Long’s advice for others interested in this area of the industry? “Be patient. Be willing to go into the unknown areas of the normal construction trades, as this is a combination of art and heavy construction methods. Gain as much knowledge as possible and be willing to spend a lot of time and money on research and development.”

Other recommendations cover good business practices. “Be prepared to be accountable and make right any failures of product or application methods in order to keep your client, projects and reputation intact. Sometimes, no matter what you do, you will not make some clients happy. Therefore, do the best you can prior to contracting — survey them like they will do with your company to see if you foresee any possible difficulties during and after construction or payment for construction.”

When your project takes you to a new location, treat local suppliers the way you want to be treated, Long says. “If we come into an area, we need to leave a positive reflection when we leave. We may return some day.”

“Challenging and rewarding,” that’s how Long describes his involvement in the industry thus far. Stimulating and encouraging might also apply. “The more projects you have completed the more you want,” he says, “as the elements associated with each project allow us to rise to the next level of imagination.”
