The EZform Board is a concrete construction joint board made by bonding an overlay of resin-impregnated Kraft paper onto the surface of specially engineered OSB board with advanced resin technology. The overlay provides a smoother finish than is possible with BB Plyform or CDX sheathing. The board resists twisting, warping and cupping due to stronger fiber orientation and advanced resin composition.

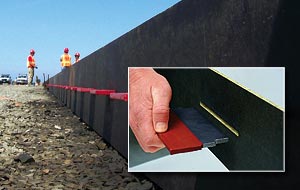

EZdowel provides optimal use of steel, shape, and thickness to provide a stronger dowel for concrete construction joint forming. The unique design of EZdowel provides 20 percent more steel closer to the higher stress area in a typical construction joint vs. other plate dowels, and can also help promote easier consolidation under the dowel. It has a specially engineered colored covering (top and bottom) allowing a bond break between the steel load transfer plate dowel and concrete. The dowel's unique edge banding allows lateral movement when the slab contracts.
EZdowel, in conjunction with the EZform board, is designed to help minimize labor costs when forming a large slab-on-grade where a superior concrete joint forming system is a necessity. Due to its simple installation method, the EZdowel eliminates the need to install external dowel holders or repair crushed ones. To install the dowel, simply slide it into the pre-cut dowel slot in the EZform board.
Also available from EZform Inc. is the EZcover. This protective blanket covering is a natural-colored cellulose product designed to help protect colored or gray slabs, or other flooring material during the construction process. The product is available in standard 8-foot width rolls, weighing approximately 100 pounds each with each roll covering approximately 400 square feet on application.
The EZcover helps protect against surface contamination, condensation, abrasions and other harmful occurrences that are possible on the job site. To install, the protective blanket is simply placed (or rolled out) to cover the desired area, and can be moved from one area to another easily. High friction coefficient keeps the blanket in place. EZcover is disposable, biodegradable and landfill friendly.
|
